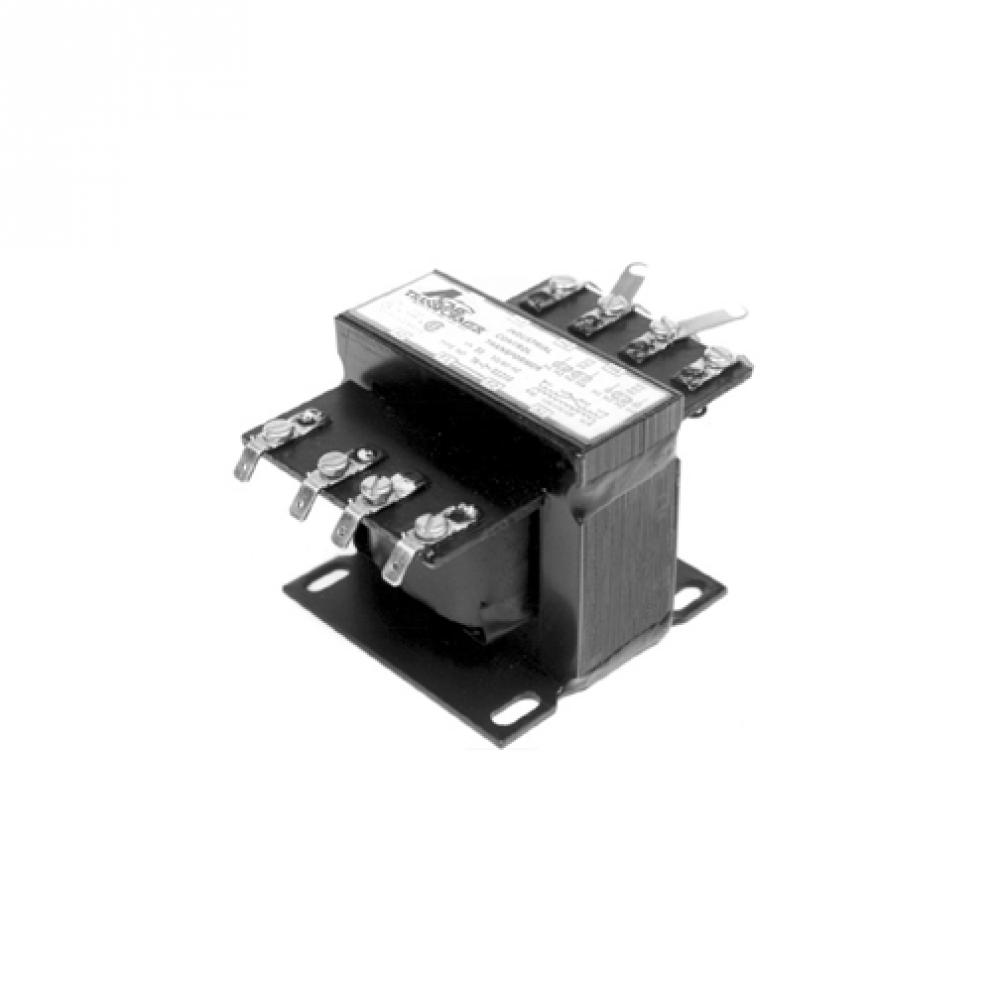

Image may not reflect selected features
TFMR 1PH .50KVA 380/440/550/600-115/230 (402ZC9L)
by Acme Electric, a Hubbell affiliate TA254539
TFMR:IND CON 1PH 500 VA
Product Specification
Item #
402ZC9L
Dimensions
Height: 6.76"
Width: 4.88"
Additional product details
Vendor Item #
TA254539
Internal #
402ZC9L
Electrical Category
Electrical Distribution Equipment
Electrical Subcategory
Power Conditioning Equipment
, Transformers And Accessories
Electrical Subtype
Control Power Transformer
, Control Transformers
, Control Power Transformers
Application
For Motor Starters, Contactors, Solenoids And Timers Or Other Loads
Brand Name
Acme Electric
Country Of Origin
USA
Enclosure
Open, Silicon Steel
Frequency Rating
50/60
Height
4.15
Insulation Class
130 DEG C Class B
Length
4.1500 IN
Maximum Output Current
4.35 AMP At 115 V
Mounting
0.22 X 0.5 IN Slot Base/Panel
Number Of Phases
1
Order Minimum
1.000 EA
Order Multiple
1.000 EA
Primary Voltage
380/440/550/600
RoHS Compliance
Contact Manufacturer
Secondary Voltage
115/230
Spec Sheet
Special Features
75 k
Standard
UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number B3223, CSA File Number 7357, OSHA Compliant, ANSI, IEEE
Stock Type
Shelf Stock
Temperature Rating
80 DEG C Rise
Type
TA Series Industrial Control Transformer
UNSPSC
39121026
Warranty Link
Weight
23.000 L
Wiring Configuration
Wire Lead Screw Terminal
Manufactured By
Acme Electric, a Hubbell affiliate
