PT DUP DECO HG 20A/125V WH (401EGTZ)
by Legrand-Pass & Seymour PT26362HGW

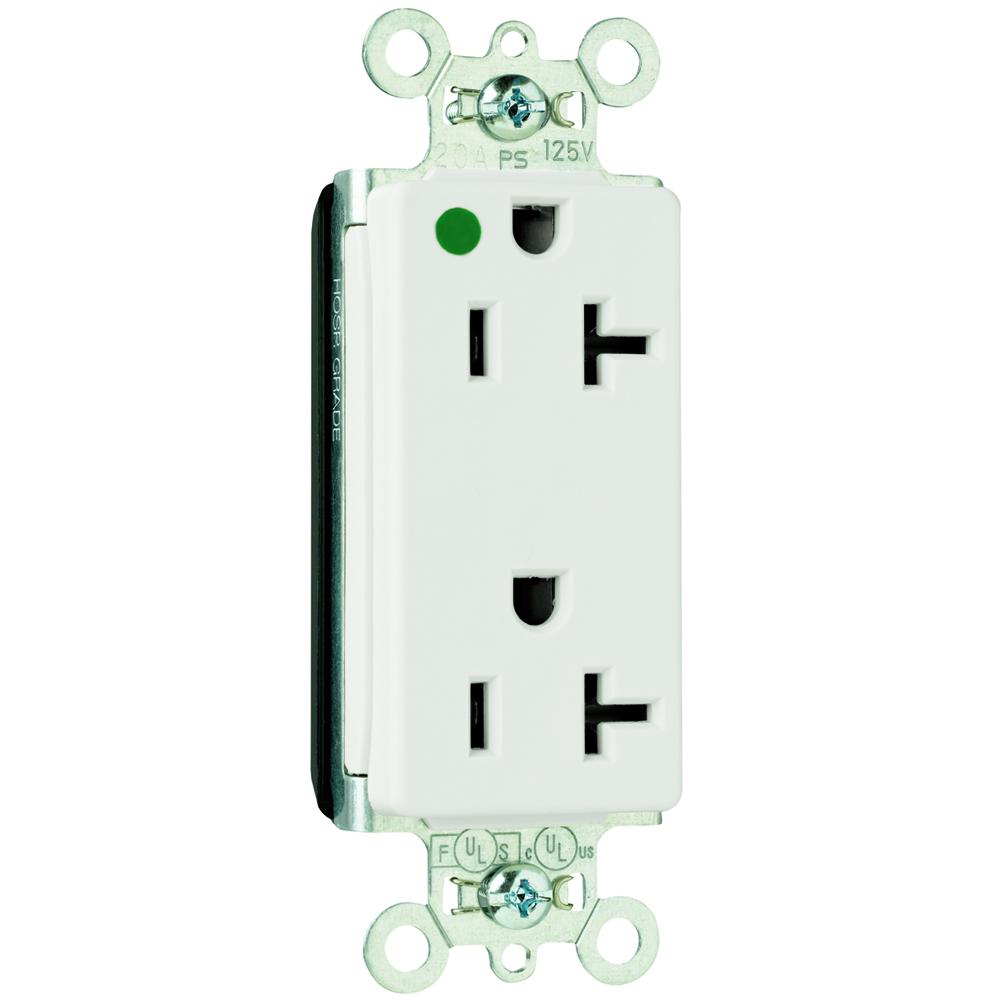

PlugTail Decorator Hospital Grade Duplex Receptacle 20amp 125volt White
Product Specification
Item #
401EGTZ
Dimensions
Height: 4.38"
Width: 1.94"
Length: 1.94"
Additional product details
Vendor Item #
PT26362HGW
Internal #
401EGTZ
Electrical Category
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory
Receptacles
, Receptacle
Amperage Rating
20
Application
Commercial
Brand Name
Legrand-Pass & Seymour
Brochure
Color
White
Country Of Origin
MX
Dielectric Strength
Withstands 2000V minimum
Environmental Conditions
Flammability: UL94 V2
Installation Link
Lead Time
10.000 DW
Material
Nylon
Mounting
Wall
NEMA Rating
5-20R
Number Of Poles
2
Number Of Wires
3
Order Minimum
1.000 EA
Order Multiple
1.000 EA
RoHS Compliance
Contact Manufacturer
Size
1.5 L x .625 W x 3.281 H
Spec Sheet
Special Features
Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe appli
Standard
cULus UL498
Stock Type
Shelf Stock
Sub Brand
Pass & Seymour
Temperature Rating
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Type
PlugTail™ Hospital Grade Decorator Receptacle
UNSPSC
39121406
Video Clip
Voltage Rating
125
Warranty Link
Wattage
Electrical power is expressed in Amps and Volts.
Weight
.200 L
Wire Size
PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Manufactured By
Legrand-Pass & Seymour
Call for Price
$
0
00
/ EA
/ 1 EA
($0.00 / 1)
Add To Quote
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
