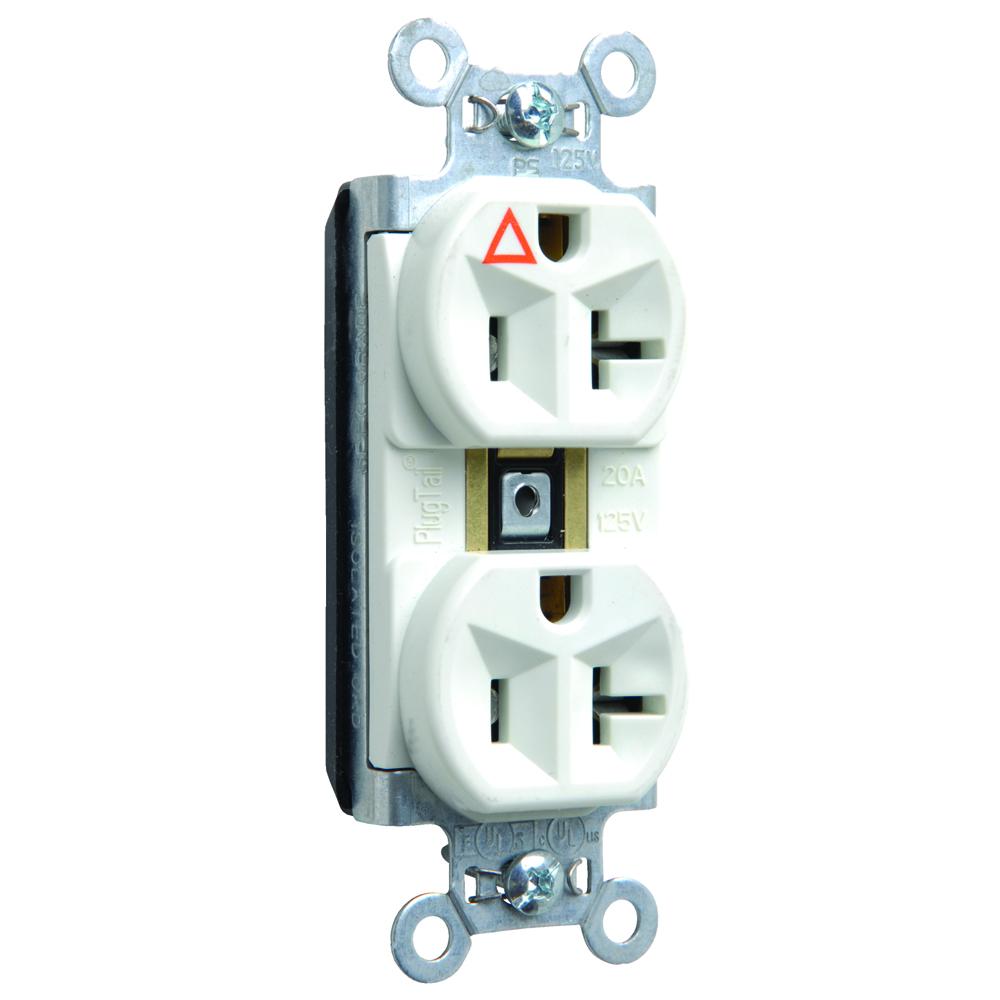

PT IG DUP RECEPT CR 20A/125V WH (401EHPC)
by Legrand-Pass & Seymour PTIG5362W
PlugTail Isolated Ground Spec Grade Duplex Receptacle 20amp 125volt White
Product Specification
Item #
401EHPC
Dimensions
Height: 4.38"
Width: 1.94"
Length: 1.94"
Additional product details
Vendor Item #
PTIG5362W
Internal #
401EHPC
Electrical Category
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory
Receptacles
, Receptacle
Amperage Rating
20
Application
Commercial
Brand Name
Legrand-Pass & Seymour
Brochure
Color
White
Country Of Origin
MX
Dielectric Strength
Withstands 2000V minimum
Environmental Conditions
Flammability: UL94 V2
Installation Link
Lead Time
10.000 DW
Material
Nylon
Mounting
Wall
NEMA Rating
5-20R
Number Of Poles
2
Number Of Wires
3
Order Minimum
1.000 EA
Order Multiple
1.000 EA
RoHS Compliance
Contact Manufacturer
Size
1.5 L x .625 W x 3.281 H
Spec Sheet
Special Features
IG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Plated steel wrap strap design for maximum durability and corrosion resistance. .036 in
Standard
cULus UL498
Sub Brand
Pass & Seymour
Temperature Rating
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Type
PlugTail™ Isolated Ground Spec Grade Receptacle
UNSPSC
39121406
Voltage Rating
125
Warranty Link
Wattage
Electrical power is expressed in Amps and Volts.
Weight
.200 L
Wire Size
PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Manufactured By
Legrand-Pass & Seymour
