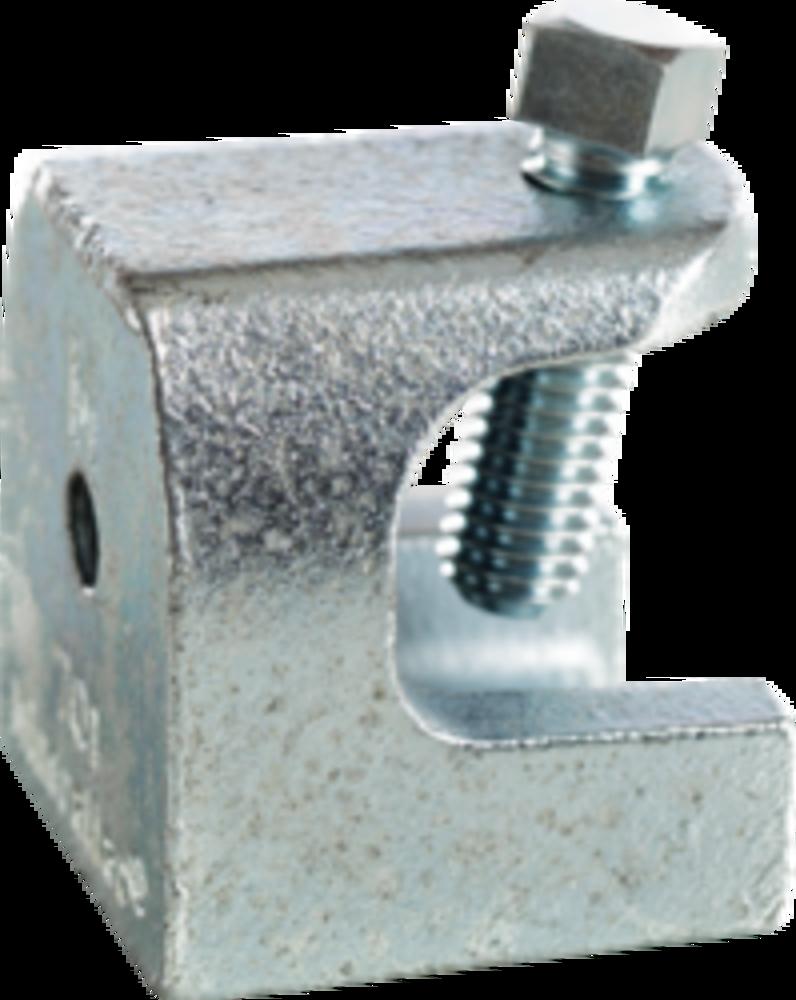

10-24 Beam Clamp Malleable (308QCKN)
by Minerallac 70010
Set Screw Beam Clamp (Malleable Iron), Fits Up to 3/4" Flange, #10-24 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated
Product Specification
Item #
308QCKN
Dimensions
Height: 0.08"
Width: 16.80"
Length: 7.71"
Additional product details
Vendor Item #
70010
Internal #
308QCKN
Electrical Category
Fittings and Hardware
Electrical Subcategory
Hooks And Clamps
Application
For use with conduit hangers, bridle rings, and drop rods 3/8" to 1/2".
Brand Name
Minerallac
Clip Type
Flange Clamp
Color
Silver
Compare Number
100
Country Of Origin
USA
Finish
Zinc Plated
Flange Width
3/4"
Length
1.20"
Material
Malleable Iron
Material of Construction
Mallable Iron
Maximum Clamp Diameter
3/4"
Maximum Load
275
Order Minimum
50.000 EA
Order Multiple
50.000 EA
Rod Size
#10-24
RoHS Compliance
Yes
Set Screw
1/4"-20
Size
1.45" x 1.20" x 1.38"
Spec Sheet
Special Features
Case hardened steel set screw tapped at an angle locks on beam.
Stock Type
Shelf Stock
Sub Brand
Minerallac Traditional
Torque Rating
40lbf-in.
Type
Beam Clamp
UNSPSC
31162905
Weight
11.600 L
Width
1.38"
Manufactured By
Minerallac
Call for Price
BASE PRICE:
$
133
66
/ EA
/ 50 EA
($267.32 / 100)
