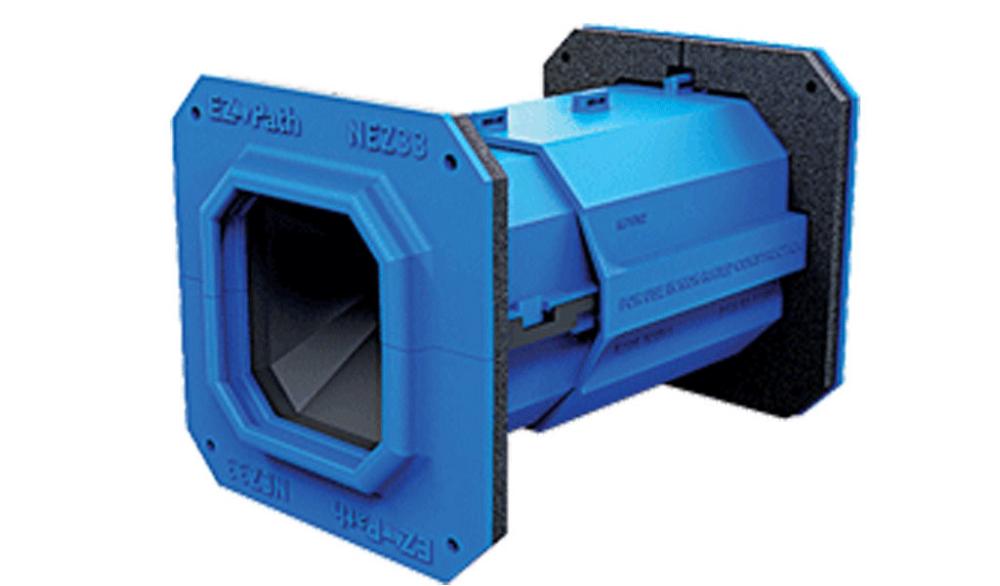

EZPath Smk & Acoustical Pathway (9021ER1)
by STI - Specified Technologies Inc NEZ33
EZ-Path Smoke and Acoustical Pathway (Device Only)
Product Specification
Item #
9021ER1
Dimensions
Height: 5.50"
Width: 6.25"
Length: 6.25"
Additional product details
Vendor Item #
NEZ33
Internal #
9021ER1
Electrical Category
Safety
Electrical Subcategory
Fire Prevention
Application
Designed for easy installation in non-rated floors and walls. Tested and approved cable capacities range from 0 to 100% visual fill. With it’s split body design, the device can be easily disassembled and installed around previously installed cables in ex
Brand Name
EZ-PATH
Color
Blue
Construction
Designed for easy installation in non-rated floors and walls, these pathways have been tested and approved cable capacities ranging from 0 to 100% visual fill. In these installations, the device does not require mechanical attachment to either the wall or
Country Of Origin
USA
Included
1 Outer Shell, 1 Inner Shell, Hardware
Installation Link
Installation Type
Screws
Lead Time
2.000 DW
Material
V-O High Impact ABS/PC Thermoplastic, Flame Retardant Neoprene Rubber
Mounting
Floors, Walls
MsdsURL
https://files.stifirestop.com/5.%20Safety%20Data%20Sheets/1.%20English/SDS_EZ-Path%20Series%2033NEZ%20Smoke%20and%20Acoustical%20Pathway.pdf
Opening Type
Electrical Through-Penetrations, Cable Through-Penetrations
Order Minimum
4.000 EA
Order Multiple
4.000 EA
RoHS Compliance
Yes
Shape
Cylinder
Spec Sheet
Special Features
Designed for easy installation., Does not require mechanical attachment to the wall or wall framing., Can be installed after wallboard., Easy install around existing cables., Provides exceptional cable capacity.
Stock Type
Shelf Stock
Sub Brand
NEZ
Temperature Rating
130
Type
Smoke & Acoustical Pathway Device
UNSPSC
46191507
Video Clip
Weight
1.270 L
Manufactured By
STI - Specified Technologies Inc
Call for Price
$
0
00
/ EA
/ 4 EA
($0.00 / 1)
Add To Quote
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
