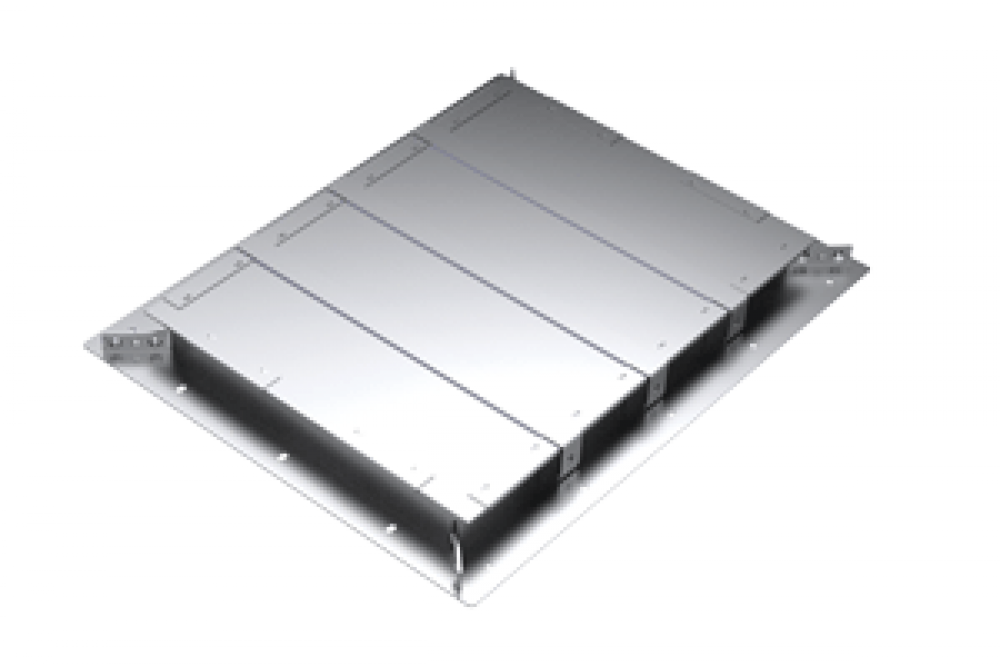

Ser 44/44+ EZPath Fl Grid Pkg to 16 Dev (9021EPK)
by STI - Specified Technologies Inc EZG1644
EZ-Path Series 44 or 44+ Fire-Rated Pathway Multi-Slot 16-Frame - Frame only (will hold sixteen pathways - four EZD444MB or EZD444MBS)
Product Specification
Item #
9021EPK
Dimensions
Height: 4.25"
Width: 10.00"
Length: 29.00"
Additional product details
Vendor Item #
EZG1644
Internal #
9021EPK
Electrical Category
Safety
Electrical Subcategory
Fire Prevention
Application
Firestopping/Cables, wires through rated walls and floors.
Brand Name
EZ-PATH
Color
Silver
Construction
Designed for high cable volume conditions through fire-rated walls and floors while eliminating the burden of ongoing maintenance. The Series 44+ incorporates self-sealing intumescent pads that automatically adjust to the installed cable fill without the n
Country Of Origin
USA
Dimensions
29 x 23
Fire Rating
Up to 4
Included
Multi-Slot Frame, 4 Firestop Panels, 12 Panel Clips, 3 Spacebar Assembly
Installation Link
Installation Type
Screws
Lead Time
2.000 DW
Material
Galvanized Steel
MsdsURL
https://files.stifirestop.com/5.%20Safety%20Data%20Sheet/1.%20English/SDS_EZ-Path%2044+.pdf
Opening Type
Electrical Through-Penetrations, Cable Through-Penetrations
Order Minimum
1.000 EA
Order Multiple
1.000 EA
RoHS Compliance
Yes
Shape
Rectangle
Spec Sheet
Special Features
Self Sealing design provides exceptional fire and smoke leakage ratings., Allows for easy Moves, Adds, and Changes., Designed for New and Existing conditions., Variety of accessories available for any field condition., Modular grid system for riser applica
Standard
ASTM E814, UL 1479, CAN/ULC S115
Stock Type
Shelf Stock
Sub Brand
EZG
Temperature Rating
120
Type
Fire Rated Cable Pathways
UNSPSC
46191507
Weight
26.590 L
Manufactured By
STI - Specified Technologies Inc
