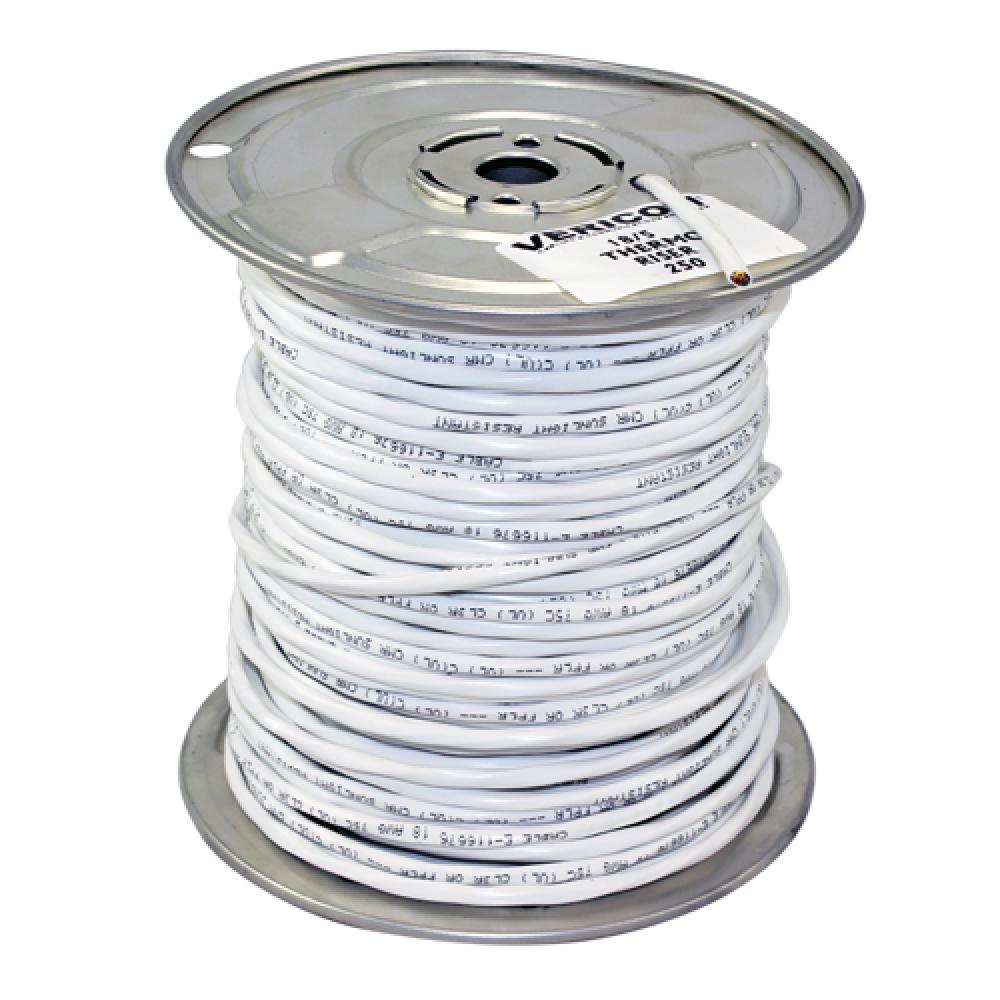

18 AWG 5 CNDTR THRMTR Cable, 250 FT (4014ENP)
by Vericom HT185-02548
Designed especially for low-voltage applications such as thermostats, our thermostat cable is manufactured for residential or commercial use. The standard color-coded conductor jackets make installation simple and accurate. The 5 conductors are made from 18 AWG solid copper for optimum conductivity. This cable also features a UL Listed, CL2R white PVC jacket.
Product Specification
Item #
4014ENP
Dimensions
Height: 6.00"
Width: 7.00"
Length: 7.00"
Additional product details
Vendor Item #
HT185-02548
Internal #
4014ENP
Electrical Category
Wire And Cable
Electrical Subcategory
Electrical Cable
Application
thermostats, HVAC controls, heat pumps, intercom systems, remote control units, doorbells, alarms, other low-voltage applications
Brand Name
Vericom
Color
White
Conductor Material
Copper
Conductor Size
18
Country Of Origin
CHN
Insulation Material
Polypropylene
Jacket Material
PVC
Length
250
Number Of Conductors
5
Order Minimum
1.000 SO
Order Multiple
1.000 SO
Resistance
6.5 Ohms/M’ at 20° C
RoHS Compliance
Yes
Spec Sheet
Standard
UL Listed, OSHA NEC Type CL2R
Stock Type
Shelf Stock
Temperature Rating
-20 to 60° C
Type
Thermostat
UNSPSC
26121634
Voltage Rating
300
Weight
8.92
, 8.920 L
Manufactured By
Vericom
