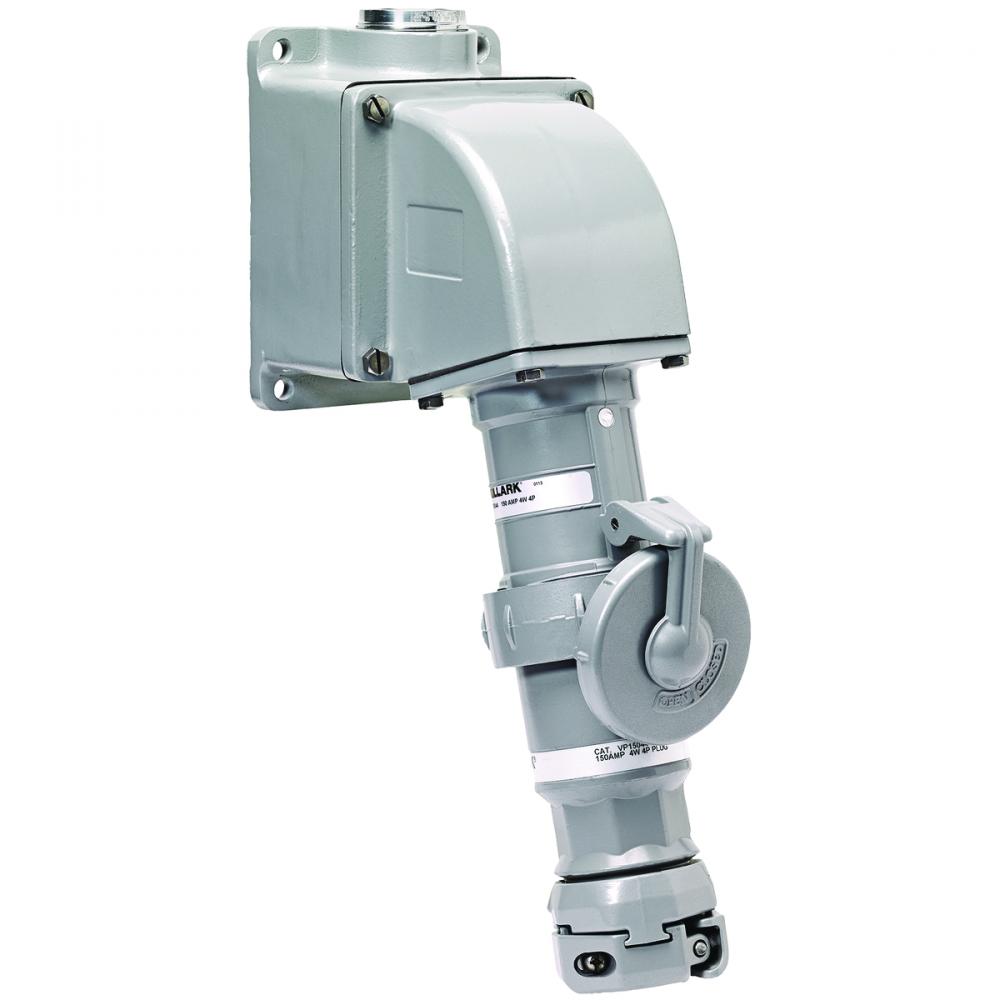

100A 3W4P RECPTW/E BOX 1-1/2 R-S (4038YPC)
by Killark, a Hubbell affiliate VR1042E5-S39
100A 3W4P RECPTW/E BOX 1-1/2 R-S
Product Specification
Item #
4038YPC
Dimensions
Height: 6.63"
Width: 6.63"
Length: 9.00"
Additional product details
Vendor Item #
VR1042E5-S39
Internal #
4038YPC
Electrical Category
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory
Receptacles
, Receptacle
Amperage Rating
100
Application
VERSAMATE metallic pin and sleeve receptacles are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable for
Brand Name
KILLARK
Color
Gray
Country Of Origin
US
Environmental Conditions
Wet and hazardous locations
Installation Link
Material
Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
NEMA Rating
NEMA 3, 4, 4X
Number Of Poles
3
Number Of Wires
4
Order Minimum
1.000 EA
Order Multiple
1.000 EA
Size
12-9/16" H x 6-7/64" W x 8-5/8" D
Spec Sheet
Special Features
Exclusive patented "Breech-Lock" cap serves as either flip lid or screw cover. Receptacle is NEMA 3R with lid snapped shut or NEMA 4X with lid turned shut or when VERSAMATE plug is inserted and locking ring tightened. Patented notch in cap arm hold
Standard
UL, CSA
Sub Brand
VERSAMATE
Type
Pin & Sleeve
UNSPSC
39121406
Voltage Rating
630;250
Warranty Link
Weight
10.500 L
Wire Size
Regular stranding: #4-#2; extra flex: #4-#2
Manufactured By
Killark, a Hubbell affiliate
Voltage Rating
Additional options that would change other selections
Amperage Rating
Additional options that would change other selections
Number Of Poles
Additional options that would change other selections
Number Of Wires
Additional options that would change other selections
Call for Price
BASE PRICE:
$
1337
42
/ EA
/ 1 EA
($1337.42 / 1)
Add To Quote
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
