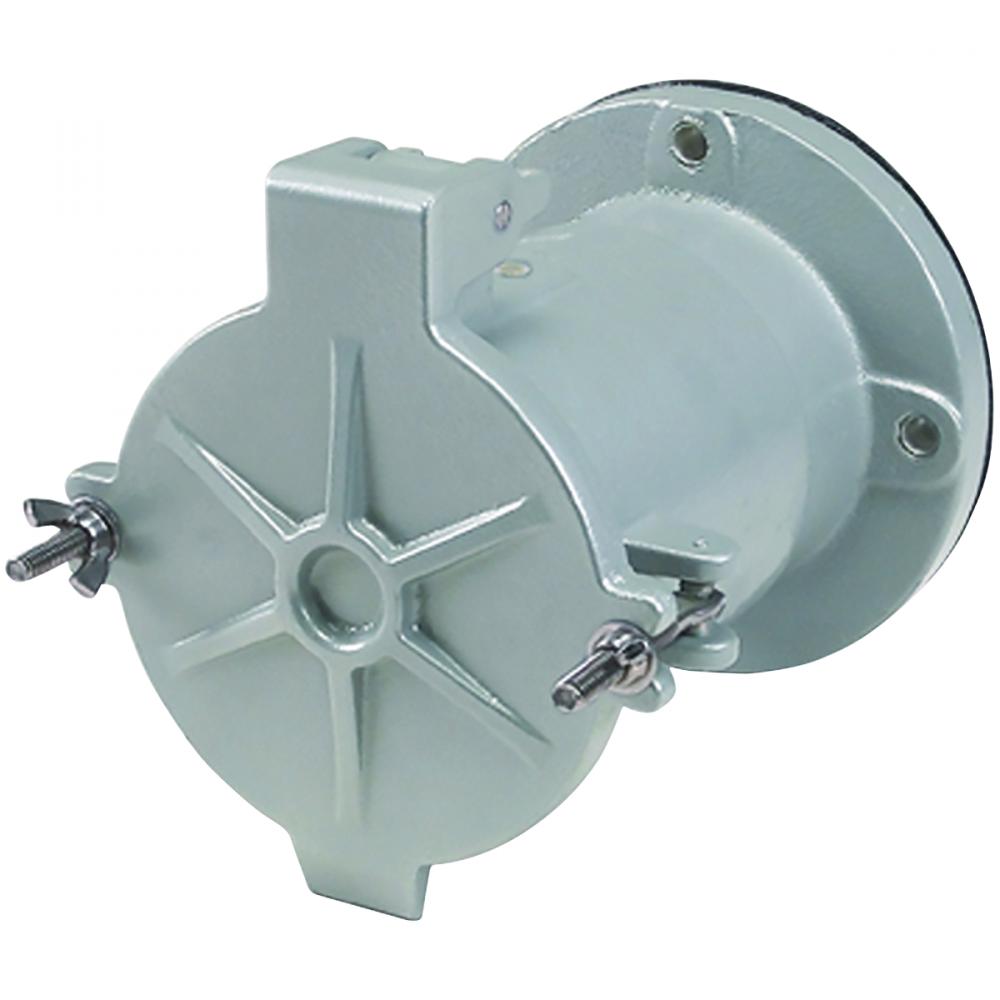

VERSAMATE 200A RECPT. 4W4P (4038YPK)
by Killark, a Hubbell affiliate VR20412
200A 4 Pole 4 Wire Receptacle Assembly
Product Specification
Item #
4038YPK
Dimensions
Height: 7.88"
Width: 9.38"
Length: 13.25"
Additional product details
Vendor Item #
VR20412
Internal #
4038YPK
Electrical Category
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory
Receptacles
, Receptacle
Amperage Rating
200
Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Por
Brand Name
KILLARK
Brochure
Color
Gray
Country Of Origin
US
Environmental Conditions
Wet and hazardous locations
Installation Link
Material
Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
NEMA Rating
NEMA 3, 4, 4X
Number Of Poles
4
Number Of Wires
4
Order Minimum
1.000 EA
Order Multiple
1.000 EA
Size
7.87 in x 6.83 in x 7.59 in
Spec Sheet
Special Features
VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and s
Standard
UL, CSA
Sub Brand
VERSAMATE
Type
Pin & Sleeve
UNSPSC
39121406
Voltage Rating
600;250
Warranty Link
Weight
10.580 L
Wire Size
Regular stranding: #1-250; extra flex: #1-250
Manufactured By
Killark, a Hubbell affiliate
Number Of Poles
Additional options that would change other selections
Number Of Wires
Additional options that would change other selections
Call for Price
BASE PRICE:
$
1823
40
/ EA
/ 1 EA
($1823.40 / 1)
